connectors:


Signal Connectors

Multi-contact connectors used for transmitting/receiving a signal.

  • MTS04, MTS12, MMTS04, and Mixed-Layout of electrical & fiber optic contacts.

  • Circular: metal (EMI/RFI shielded) or plastic housing, 2-37 contacts, 2A-13A, -40ºC to +200ºC, IP67, 0.1 oz.+ weight.

  • M-8, M-12, & M-23: for automation, transportation, & industry. 2-19 contact Connectors & cable assemblies. Plus: rail-mounted. Used on PROFIBUS, CAN BUS, PROFINET Systems, D, B & A codes.

  • D-Sub connectors, Mixed-Layout (or Combo), IP67 water-resistant, filtered and mixtures thereof. Plus, fiber optic. Hoods. Quick-release hoods & sys.

MTS04 Series

4 x 3A, 200ºC, ~.31"ø, 0.1 oz, threaded, EMI/RFI, circular brass shell. Ideal for instruments.

• MTS04-115............straight Plug
• MTS04-215............straight Plug (IP67)
• MTS04-215WH4...straight Plug with wire holes
• MTS04-235...........black straight Plug
• MTS04-315............r/a Plug (not IP67)
• MTS04-425...........straight cable Receptacle
   (also IP67 when mated to MTS04-215)
• MTS04-52............straight bulkhead Receptacle (IP67)
• MTS04-525RA......r/a front bulkhead Receptacle
• MTS04-525SH......r/a PCB Receptacle w/shielded
   hood
• MTS04-545...........black bulkhead Receptacle (IP67)
• MTS04-625...........straight rear threaded bulkhead
   Receptacle
• MTS04-821............straight panel solder mount
   Receptacle
• MTS04-883...........straight hermetic Receptacle
• MTS04-921............PCB Receptacle (also IP67 when
   mated to MTS04-215)
• MTS04-WTK4.........white PTFE cable, 4x3A
• MTS04-STI4............black flexible cable, 4x3A

MTS12 Series

12 x 3A, 200ºC, ~.43"ø, threaded, EMI/RFI, circular brass shell. Ideal for robotics & instruments.

• MTS12-115..............straight Plug
• MTS12-215.............straight Plug (IP67)
• MTS12-425............straight cable Receptacle
• MTS12-525............straight front threaded bulkhead
   Receptacle (IP67)
• MTS12-525RA........r/a PCB Receptacle
• MTS12-525SH........r/a PCB Receptacle w/shielded
   hood
• MTS12-625............rear threaded bulkhead Receptacle
• MTS12-921.............PCB Tailed Receptacle
• MTS12-WTK12.......white PTFE cable, 12x3A

MMTS04 SERIES

4 x 1A, 200ºC, ~.21"ø, threaded, EMI/RFI,
circular brass shell. Ideal for drones & instruments.


• MMTS04-111...........straight cable Plug
• MMTS04-131..........black straight cable Plug
• MMTS04-21...........straight cable Plug (IP67)
• MMTS04-521.........front straight bulkhead Receptacle
• MMTS04-621.........rear threaded bulkhead Receptacle
• MMTS04-821.........straight panel mount Receptacle



Mixed Layout SERIES

Contact Reichenbach International for details.


Power CONNECTORS:

RII Power connectors pic_c.jpg

Circular: metal (EMI/RFI shielded) or plastic housing, 2-37 contacts, 13A-50A, -55ºC to +105ºC, IP67, threaded

Contact Reichenbach International for detail


High Voltage CONNECTORS

Circular: plastic/metal housing, threaded/push-pull Plug or Socket, 1 contact at: 3KV, 10KV, 15KV, 30KV, 40KV or 45KV, for 10A +under. Also oil-tight versions.

Contact Reichenbach International for details


coax CONNECTORS

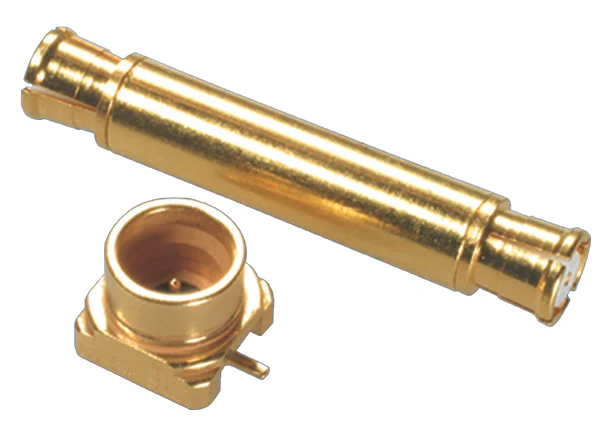

Standard coax connector versions ( 1.6/5.6, 7/16, FME, MCX, MMCX, N, SMA, SMB, SMC, SMP, & TNC),  adapters, U.FL Plug...to 1.32mm cable...to "FME or SMA or SMB"Jack cable assembly, test cable assemblies, custom cable assemblies, quick-locks (SMA, N), SMP to PCB board spacing systems & SMP board interconnects.


pcb CONNECTORS

Spring loaded connectors , PBC connectors of various pitches, DIL/SIL/TO sockets, PBA/BGA/PLCC sockets, contacts, & custom connectors.

Contact Reichenbach International for details
